Diamond Buffer



Ended  up using  12R / 220R  for 12ma bias through outputs.
changed to 4.7uf/47k  with 3K feed for servo
reason is: Parts in Stock

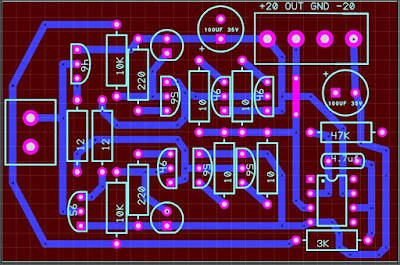

New pin compatible through hole plug in layout
